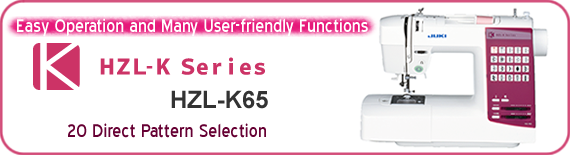

HZL-K65

HZL-K65

Easy Operation and Many User-friendly Functions.

タブコンテンツ1(オレンジ線下から)

20 Direct Pattern Selection

・Just one touch! Your desired sewing pattern can be selected by simply pressing a button.
・The pattern selection key illuminates when it is selected.
・The symbol of presser foot is shown by stitch illustration.

20 Direct Pattern Selection

Start/Stop Button

The color of the Start/Stop button indicates the status of the machine.
[Green] Ready to sew or currently sewing
[Red] Not ready to start
[Orange] In bobbin winding condition

Start/Stop Button

Size of Stitch Pattern and Needle Position

You can change the size of stitch patterns as well as the needle position. HZL-K series has 15 needle positions.

Size of Stitch Pattern and Needle Position

Two Automatic Lock Stitches

HZL-K series can automatically sew a lock stitch at the beginning and end of sewing. There are two types of lock stitch, reverse stitch and reinforcement stitch.

Two Automatic Lock Stitches

Buttonhole

HZL-K series sews the buttonhole automatically according to the size of the button.

Buttonhole

Needle Threader

The needle threader easily threads the needle and allows you to start sewing quickly.

Needle Threader

Thread Tension

Normally, if the dial is set to "Auto", it is suitable for most fabrics.

Thread Tension

Easy to Start Sewing Thick Fabrics

Press the black button of presser foot to make the presser foot parallel to the throat plate. This makes easy to start sewing thick fabrics.

Easy to Start Sewing Thick Fabrics

LED Light

LED light brightens the needle area for a better material handling. LED light will not heat up even during long operations.

LED Light

Other Features

・Free Arm
・Drop in Bobbin
・Drop Feed for Free Motion Quilting

Hard case

Hard Case

Foot Controller

Foot Controller

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Control system(Arm size)Computer (Arm Size 151㎜)
Dimensions415(W) x 300(H) x 190(D)mm
Weight7.1kg (15.6LBS)
Maximum sewing speed720 sti/min
Number of stitch patterns20
ButtonholeAutomatic Buttonhole Length: - 2.5cm
Direct stitch pattern selection20
Start/stop button[Green] Ready to sew or currently sewing. [Red] Not ready to start. [Orange] In bobbin winding condition.
Adjustable starting / reverse stitch speed-
Auto thread trimming-
Thread cutter
Automatic needle threader
Thread tension systemAuto
Needle up/down button-
Low-speed inching sewing-
Needle stop positionDown
Needle stop position switching-
Lock stitchReverse stitch (Button system) Automatic reverse stitch or reinforcement stitch
Feed mechanism7 point feed dog
JUKI Smart Feed (dual feed function)-
Presser foot pressure adjustment-
Auto presser foot lift system-
Micro-lifter-
Function to straight-line stitching-
Presser foot pivot function-
Presser foot lift (1 step/2 steps)Lever system: 5.5mm / 10.5mm
Horizontal presser foot holder button
Drop feed
Quick bobbin preparation-
Easy bobbin winding (Bobbin winder with independent motor)-
Bobbin thread detection-
Stitch lengthSlide lever system Max. 4mm
Stitch widthSlide lever system Max. 7mm
Number of needle position (straight stitch/other than straight stitch)15 / -
Pattern reverse-
Twin needle sewing-
Lock mode-
Elongation-
Save/call of patterns-
Light1 LED light
Type of hookHorizontal hook
Free arm
Cord reel-
Knee lifting lever-
Foot controller
Wide tableOption
Accessory storageAuxiliary bed
Sewing machine coverHard case with instruction manual keeper part
Operation supportDVD
Supported languages-
Accessories (presser feet)Standard presser foot (A) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Quilting attachment
Other accessories_1Bobbin (3) Needle pack HA X 1 No.11 2P:No.14 1P Quilt guide Spool pin Oiler T-shape screwdriver Seamripper Spool cap (large) Spool cap (medium) Spool cap (small) Spool pin felt disc Foot controller Electric power cord Hard case Instruction manual Operation support DVD
Other accessories_2

INCLUDED ACCESSORIES

Standard Presser Foot

It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.

Movie

Overcasting Presser Foot (Overedge Foot)

Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 6-point zigzag.

Movie

Buttonhole Presser Foot

You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.

Movie

Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)

The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.

Movie

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

Movie

Blind Stitch Presser Foot with adjustment guide / Blind Hem Foot with adjustment guide

By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the guide position according to the fabric before sewing.

Movie

Quilt Presser Foot (Zigzag Type)

The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches. Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.

Movie

Quilt Guide

Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted.

Movie

Foot Controller

Controlling the sewing machine with your foot leaves both of your hands free while sewing.

Bobbin(5pcs)

Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.

OPTIONAL ACCESSORIES

Zig Zag Presser Foot

The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.

Movie

Button Attaching Presser Foot

Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.

Movie

Invisible Zipper Foot

Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.

Movie

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.

Movie

Roller Foot

The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.

Movie

Rolled Hemming Presser Foot

The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.

Movie

Walking Foot

This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding.

Movie

Patchwork Presser Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Normal type and for JUKI Smart Feed.)

Movie

Gathering Foot

Change the stitch length, thread tension and presser foot pressure to adjust the amount of fabric that is gathered. You can also use this presser foot to sew two pieces of fabric together while creating gathers in only the lower piece.

Movie

Quilt Guide

Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted. You can use this guide inserting from either the right side or the left side.

Movie

Magnetic Gauge

A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.

Movie

Wide Table

After removing the auxiliary bed, this table can easily be installed by fitting it into place.

・Wide Table
・Smooth Presser Foot
・Even Feed Presser Foot etc.

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

STITCH PATTERNS

STITCH PATTERNS
