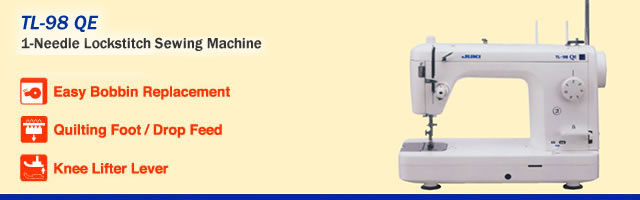

TL-98QE
Major Features
Quilting Foot / Drop Feed
The quilting foot is designed for free motion quilting and free-hand embroidery. 1/4 Quilting foot is supplied as standard accesories with the machine.
The feed dog can be raised and lowered simply by depressing a switch. When quilting, the drop feed allows you to sew curved stitches with ease.
Even Feed Foot
With its reliable feed, the even feed foot ensures the machine's ability to produce beautiful seems when sewing difficult-to-feed fabrics such as georgette and velvet, as well as heavy weight materials such as leather.
Easy Bobbin Replacement
A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin.
Knee Lifter Lever
The knee lifter lever allows you to lift / lower the presser foot without using your hands.
Adjustment of Presser Foot Pressure
Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine.
Heavy-Weight Materials are sewn with Ease
The speed control mechanism, operated by microcomputer, allows the machine to sew material at low speeds. This provides for accurate feed and perfect stitching when sewing heavy weight fabrics, quilting and multiple layers of materials.
Predetermined Stop Position of the Needle
To move the needle up or down as desired, simply press the needle up/down button. When the button is pressed continuously, the machine sews stitch by stitch at low speed.
  UP
Specifications
ITEM
SPECIFICATIONS
Sewing Speed Max. 1,500r.p.m
Stitch Length Max.6mm
Lift of the Presser Foot By Lever Max.9mm, by Knee Lifter Max. 12mm
Needle (HLx5#9-#16)
Dimensions 452 (W) x 350 (H) x 219 (D) (mm)
Weight (Machine only) 11.3kg
Rated Voltage / Power Consumption 120V / 1.4A, 100W
Power Consumption of the Lamp 12V, 3W
Hook Horizontal-axis Full-rotary Hook
  UP
Download
Download the documents of TL-98QE
